900cc Ironhead Engine Build
Text and Pictures by Mark Trotta
It's challenging enough rebuilding any Ironhead motor, and rebuilding an early 900cc motor presents a few more challenges. Of course it's worth it, because there isn't a better looking or better sounding motorcycle on the planet.
Difficulties will include limited parts availability, and even more (!) specialty tools.
900 Ironhead
When the Sportster XL debuted in 1957, displacement was at 883cc, rounded up to 900cc for marketing purposes.
Picture Courtesy American Classic Motorcycle Museum, NC
In 1972, engine displacement increased to 997cc, advertised as 1000cc. Not many parts interchange between the two engines.
883 vs 900 Sportster
When Evo Sportsters debuted in 1986, they were offered in 883cc and 1100cc displacements, then later in 1200cc. To avoid confusion with 883 Evo models, early Sportster engines are commonly referred to as the 900 Ironhead.
********************
Early Cases
As with all motorcycles, Ironhead engine cases are the foundation upon which all else is built.
Although 1957 and 1958 cases have different casting numbers than later examples, all 900cc engine cases from 1957 through 1966 are interchangeable.
Starting in 1967, a second set of engine cases were produced to accommodate electric start. So, from 1967 to 1971, there were two sets of cases for the Ironhead 900 (XLCH models were kickstart only).
All Ironhead motors have cast aluminum engine cases, which are prone to crack under abuse. Very often they can be repaired to as good as new - provided the repair was done right. The key is to find someone who has experience with welding dirty cast aluminum.
Read: Repair Cracked Cases
Lapping the main bearing race assures precise alignment of flywheel shafts, allowing maximum power and engine life.
Read: Harley Crankcase Lapping Tool and Usage
********************
900 Ironhead Cylinders
All 900cc Ironhead cylinders have a 3" bore and all year 900's (1957-1971) interchange with each other. Larger 1000cc jugs are slightly different and won't fit without a lot of machining.
Early Ironhead cylinder jugs were painted silver from the factory.
Read: Ironhead Sportster Cylinders

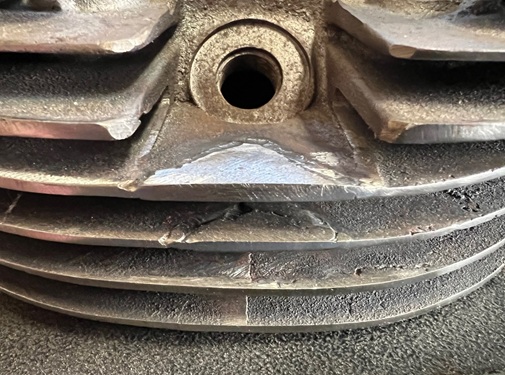

Read: Cracked Cooling Fin Repair
********************
900 Ironhead Heads
Finding good 900cc heads get harder with each passing year. Availability is nowhere near as good as 1000cc Ironhead heads, and the two do not interchange.
Early Sportster heads (1957-1968) were painted silver from the factory. Later heads (1969-up) were painted black.

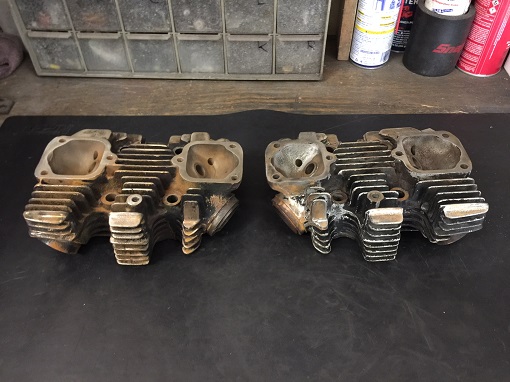

Early 900cc heads, before and after valve job
If you want to tackle rebuilding Ironhead heads yourself, you'll need a few specialty tools, and in the process learn some new skills. But you won't know how far you'll need to go until the heads are off and valves are out.
Read: Ironhead Cylinder Head Removal
900 vs 1000 Ironhead Heads
Unless you have access to a machine shop, 1000 heads do not interchange with 900 heads.
In the picture above, note that the 900cc head gasket does not line up on the 1000cc head.

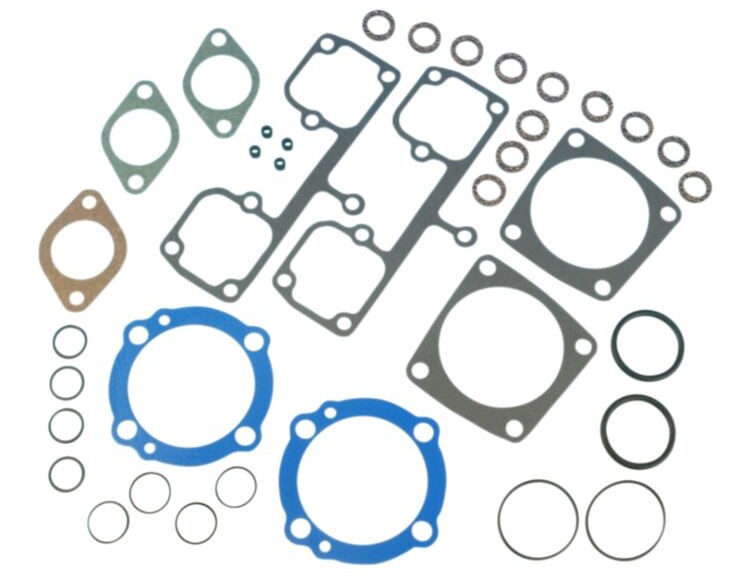

Shop: James Gasket Top End Gasket Kit For Harley Sportster 1957-1971
********************
Early and Late Cams
There are two styles of Ironhead cams, early (1957-1970) and late (1971-1985). They do not interchange.
Early Sportsters have an external ignition timer, which runs off one of the cams. This was no longer needed when points were moved to inside the right case in 1971.
Install Sportster Cams
Remove/Install Sportster Cam Bushings
Remove/Install Sportster Cam Bearings
********************
Truing Flywheels
Due to their 45-degree configuration, Harley V-twin motors are inherently out of balance to begin with.
It is essential that flywheel assemblies to be trued, Not only will engine vibration numb your hands and feet while riding, it could cause internal engine damage.
********************
Sprocket Shaft Bearings
From 1957 to early 1976, Sportsters had a one-piece sprocket shaft race. These are sold as a matched set, which should include two bearings, a one-piece double bearing race, and a spacer. The race needs to be pressed in with a hydraulic press.
Pinion Roller Bearings
From 1957 to 1976, Sportsters used loose roller bearings on the pinion side. Later models (1977-1985) had fixed, or captured bearings.
Loose roller bearings require more attention than captured roller bearings. When in doubt on proper fitment, remember that a little too loose is always better than a little too tight.
********************
900 Ironhead Pistons and Rings
Eastern Motorcycle Parts offers a Replacement Piston Kit For 1957-1971 Harley Sportsters.
The kit includes two cast alloy pistons, genuine Hastings 3-piece ring set, 2 wrist pins and 4 circlips. Unfortunately, sizes are limited.
900 Ironhead Gasket Kit
Don't skimp here; buy a James Gasket Kit.
If possible, new engine gaskets should be matched up to old ones.
********************
900cc Ironhead Transmission
Rebuilding an Ironhead transmission is a project within a project.
Read: Ironhead Transmission Basics
Read: Remove And Install Ironhead Transmission
********************
A Word About VIN Numbers
Up until 1969, VIN numbers on Harley-Davidson motorcycles appeared only on engine case, and usually started at the number 1000 each new year. Starting in 1970, matching VIN's appeared on both engine and frame.
If you are looking at an Ironhead Sportster project and there are no numbers on the base of a motor, BEWARE. It's likely they were ground off intentionally (stolen motor).
If you are looking to buy a 1970 or later Harley motor with no frame and try registering it with just the engine's VIN, it's not going to be the true Harley title. Someone else may be riding around in the frame with a different or aftermarket motor, and that bike is correctly titled from the frame number. If you get stopped and they run your VIN number, your bike could get impounded because there's another bike out there that is correctly registered with the same VIN.
********************
