Ironhead Sportster Cylinders (Identification and Fitment)
Text and Pictures by Mark Trotta
They may all look alike, but Ironhead Sportster cylinders are not all the same.
900cc and 1000cc jugs are not interchangeable.
Different year 1000cc jugs are not all interchangeable.
Front and rear cylinders are different.
All year Ironheads (1957 through 1985) have one front cylinder and one rear cylinder that are not interchangeable with each other.
. The front cylinder has an exhaust port at the front, and the rear cylinder has an exhaust port at the rear. Both have push rod cut-outs that face to the right side.
Know what you're working with before you start mixing and matching!
900cc Ironhead Cylinders
There is only one style of 900cc Ironhead cylinders. 900cc cylinders have casting numbers 16561-57 on the front jug and 16581-57 on the rear jug.
All years (1957-1971) have a 3" bore and all years interchange with each other.
Since half a century has passed since these were last produced, finding a pair of decent 900cc Ironhead jugs is not easy. If you have a set that aren't missing fins and aren't bored .060 over, consider yourself fortunate.
*********************
Read: Ironhead Cylinder Head Removal
Read: Cylinder Head Cleaning and Inspection
*********************
Difference Between 900cc and 1000cc Jugs
The quickest, most reliable way to distinguish 900cc from 1000cc cylinders is to read the casting numbers. You can also tell by having a head gasket or a base gasket for each type and see which one lines up.
The picture above shows a 900cc head gasket on a 1000cc head. Notice the slight difference where the bolt holes should match.
Shop: Cylinder Base Gasket For Ironhead Sportster
*********************
1000cc Ironhead Cylinders
There are early and late 1000cc cylinders. The first run was from 1972 to early 1973, which are not bored-out 900cc jugs, they are their own unique casting.
Casting numbers started with 16561-72 (front jug) and 16581-72 (rear jug) with later examples having "A" or "AB" suffixes.
Due to popular demand, V-Twin Mfg. now offers replacement cylinders for 1972 Sportsters. They are sold individually and are in standard bore.
V-Twin 10244011 Front Cylinder Replaces H-D 16465-72
V-Twin 10244012 Rear Cylinder Replaces H-D 16464-72
Pistons and Rings
V-Twin Mfg. also offers Piston Kits for Ironhead Sportster, which include 2 cast alloy pistons, genuine Hastings 3-piece ring set, 2 wrist pins and 4 circlips.
Pistons and rings are available in STD, .010, .020, .030, .040, .050, .060, and .070 oversizes.
NOTE: Early 1000cc cylinders have thinner cylinder walls and can only be bored .040 over.
*********************
Late 1000cc Jugs

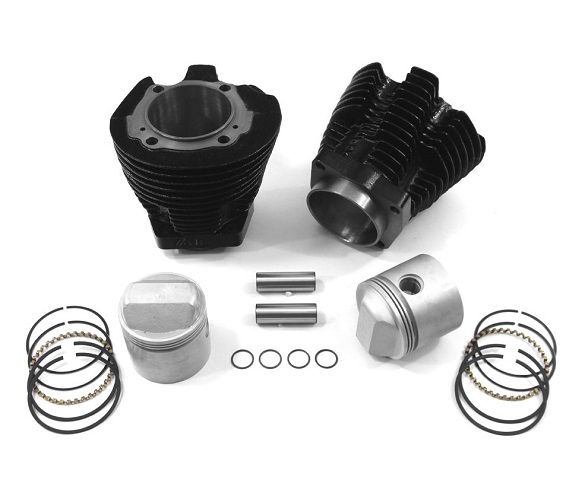

J&P Cycles offers a nice piston and cylinder kit for 1973 through 1985 Ironhead Sportsters.
Shop: Ironhead Cylinder And Piston Kit
The only physical difference between aftermarket Ironhead cylinders and factory cylinders is that they do not have casting numbers on them.
***********************
Early vs Late 1000cc Ironhead Jugs
Both early and late 1000cc cylinders have a 3-3/16" bore, but they do not interchange. The difference is the head bolts and their bolt holes.
Late 1000cc jugs have thicker cylinder walls and can be bored .070 over.
Early vs Late Identification
A way to distinguish between early and late jugs is the head bolts.
Early 1000cc (1972 and E1973) have 6-point 9/16" diameter head bolts.

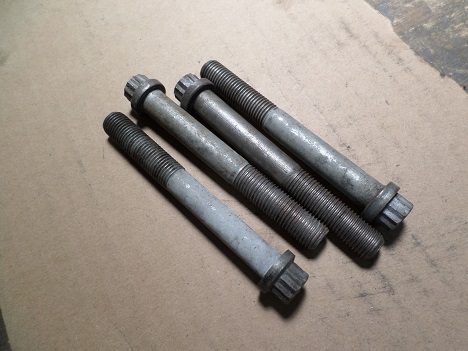

Late 1973 through 1985 have 12-point, 7/16" diameter head bolts.
On early 1000cc jugs, the head bolt threads come right up to the gasket surface. On late 1973 and up 1000cc jugs, the head bolt threads are countersunk about 1/2".
900cc vs 1000cc Ironhead Cylinders
Aside from having a larger bore diameter (3" vs 3-3/16"), 1000cc jugs have a wider spigot opening.
Cylinder spigot diameter on 900cc engine cases is 3-3/16".
Cylinder spigot diameter on 1000cc engine cases is 3-7/16".
If you open up the spigot holes in 900cc cases to make 1000cc jugs fit, they won't bolt up. The bolt patterns in the engine cases are slightly different and won't fit without a lot of machining.
I have seen 1000cc cylinder bolt holes that have been ovaled out with a drill or file to make them fit on 900cc cases. This practice may have been tolerable 50 years ago, but hopefully nobody here in the 21st century thinks this is still a good idea!
***********************
Stroker Oil Hole Relocation
Near the bottom of Sportster cylinders, there are oil drain holes. If you're building a stroker motor and using stock cylinder jugs with a stroke length of 4-7/16" or longer, the oil rings will touch and/or cross the oil holes using stock jugs. This would allow oil to return above the oil ring, which causes excessive engine smoke and oil consumption.
To prevent this, the oil holes need to be relocated.
Read: Sportster Cylinder Oil Hole Relocation
The alternative to relocating the oil holes on stroked motors is to find and install taller stroker jugs.
Related Article: Ironhead Stroker Build
Back in the day, stroker flywheels, rods, and cylinders were far more common. Today, these parts are hard to find.
*********************
Harley XR-1000 Cylinders
In 1984 and 1985, Harley-Davidson produced the XR-1000 Sportster, which featured special cylinders and heads, along with a pair of 36mm Dell'Orto carburetors.
Because the XR1000 cylinder heads were larger than stock cast-iron heads, the cylinder barrels were shortened to fit into the Sportster frame. They are not interchangeable with other 1000cc cylinders.
*********************
Cylinder Boring And Honing
A good straight bore with a proper cross-hatch pattern, and correct piston to wall clearances, is a MUST for good sealing and ring life.
Ironhead cylinders, whether they are new or aftermarket, should always be measured before installation.
*********************
Cylinder Sleeving
If you want to keep your bike original, consider having your over-bored cylinders sleeved. Provided the machine work is done correctly (straight and round), it will bring your old cylinders back to their original bore size. This process is also known as re-lining.
NOTE: Before going this route, check that standard-sized pistons and rings are still available for your motor.
*********************
Ironhead Cylinder Head Swapping
900cc heads will only bolt up to 900cc cylinders.
If you have a set of early 1000cc jugs, you need to use early 1000cc heads and head-bolts.
If you have a pair of late 1000cc jugs, you need to use late 1000cc heads and head-bolts.
*********************
Are Torque Plates Necessary When Boring?
All year Ironhead Sportsters (1957-1985) have cast-iron cylinders. They are very stiff, and with the exception of all-out racing, do not require torque plates when being bored. Later model Evo Sportster cylinders (1986 and up) are of a much lighter construction and will require torque plates.
*********************
Cylinder Base Nuts and Washers
Colony offers a cylinder base nut kit for 1957 through 1979 Sportsters.
Shop: Cylinder Base Nut Kit
*********************
