Harley Generator - Repair or Replace

text and pictures by Mark Trotta

Vintage Harleys are not known for having great charging systems. Your bike's generator doesn't really charge the battery until engine rpm is considerably higher than idle. And if you have an electric starter, trips less than 15-20 miles are not enough to recharge the battery's losses from starting.

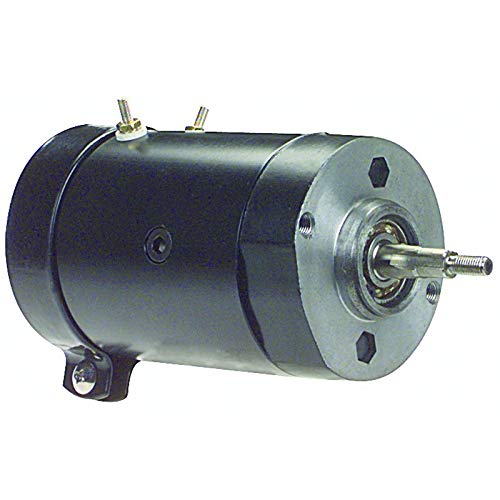

harley generator repair or replace

Harley Generator Problems

If your battery keeps dying, stop blaming your battery. That's the first sign a generator not charging properly. Here's a simple way to test it--with everything hooked up properly, and a fully charged battery, start the engine and turn on your headlight. If the light gets brighter when you rev the motor from idle, the generator is working correctly.

Generator Amperage Test

If you have a multimeter that reads DC amps, check the generator output with bike running. It should be 10 amps or higher. Be careful not to test too long - usually you can test for about 15 seconds, then you have to let it at rest for 15 minutes before re-testing.

Amp Gauge vs Volt Gauge

Consider adding an ammeter gauge to your bike, then you will always if your generator is working. An amp gauge will tell you the amount of amps passing into or being drawn out of the battery. A voltmeter will tell you the "pressure" behind the amps. Remember that amp gauges work in either direction so make sure you don't have the connections reversed. Current flows from negative to positive in a DC circuit.

Generator Voltage Test

Another way to test generator output is to compare the difference between voltage at the generator and voltage at the battery. This can be also done with a multimeter. Voltage should be higher voltage at the generator.

Two-Brush vs Three-Brush

The 6-volt, three-brush generator was in use from the 1930s through the 1950s, and was troublesome. Harley switched to a two-brush generator in 1958. The first of these was the 6-volt model 58, in use from 1958 to 1960. A year later (1961) the model 61 generator replaced it.

When Harley-Davidson started replacing their 6-volt electrical systems to 12 volts in 1964, the model 65 generator was introduced, but was quickly replaced with the 65A generator. Be aware that 65 and 65A models look alike, but have opposite-side A and F terminals.

Harley generator charging problems

Harley 65A Generator

The 65A generator was found on Big-Twins from 1965 to 1969, Servi-cars from 1964 to 1969, and Sportsters from 1965 to 1981. In 1982, the Sportster generator was changed to the 65B, which saw use until early 1984. Today, the 65B is pretty much obsolete.

Harley Generator Rebuild

I've had several bad experiences trying to get an old generator rebuilt. Save yourself the hassle and replace your generator with a new unit.

Cycle Electric Generator

If you're riding or restoring a Panhead, Shovelhead, Flathead, or Ironhead, consider upgrading from the stock generator. I have found that Cycle Electric offers the highest quality Harley generator replacement.

best replacement generator for pre Evo Harleys

Read: Install Cycle Electric Generator

A Cycle Electric unit will replace the 58, 61, 65, 65A, and 65B generators. You'll get a complete charging system in one unit, with a higher output and longer service life than your original generator. The built-in voltage regulator has a clean look and a two-wire hookup makes installation simple.

Cycle Electric offers two 12-volt units and one 6-volt unit with built-in regulators; the DGV-5000, DGV-5000L, and DGV-5006.

Cycle Electric DGV-5000

The DGV-5000 generator with regulator will fit 1936-1984 12-volt systems with a 7-amp (or larger) battery. There are several styles of oil deflectors and you will need to re-use your old one (see below).

best Harley generator replacement

This unit is the best choice for 12-volt Sportsters and Shovelheads.

Cycle Electric DGV-5000L

Another Harley generator replacement from Cycle Electric is a low-amp model, the DGV-5000L with regulator. This generator is designed to work with 1936-1964 models converted to 12-volts with a 5.5-amp (or less) battery.

Cycle-Electric generator and regulator

The DGV-5000L is a good choice when converting 6-volt to 12-volt with kick-start only and battery is 5.5 amps or less. If you are converting from 6v to 12v, make sure the new battery will fit in the battery box. You may also need to replace the battery cables.

6-Volt to 12-Volt Conversion

Harley-Davidson used a 6-volt electrical system on motorcycles until 1964 and on trikes until 1963. If your 6-volt battery and electrical system are in good shape and you're not running auxiliary lighting, there is really no need to convert to a 12-volt system.

Cycle Electric DGV-5006

Also available from Cycle Electric is the DGV-5006 with regulator. This is a 6V Generator with voltage regulator. The DGV-5006 is for restorers who want to keep their ride 6-volts, but would like a more reliable charging system.

If you decide to convert to 12 volts, you can re-use your wiring harness provided it's in good shape. All bulbs--headlight, tail-light, dash lights, etc., all of the old 6-volt bulbs must be replaced with 12-volt bulbs. You can use your headlight switch, brake-light switch, and high-beam switch. They will work in either a 6v or 12v system.

Oil Deflectors

On a three-brush generator, the oil deflector requires a spring between it and the bearing to hold it up against the gear. There is a spring-loaded breather on the inside of the cam cover that rides on the end of the gear. If you are replacing a three-brush generator (1936-1957) with a new-style unit, use H-D 31035-58 oil deflector, and discard spring and old deflector.

harley generator repair or replace

The oil deflector used on later two-brush generators has a built-in collar. The gear is drawn onto the shaft with a nut until it pinches the oil deflector tight against the inner race of the ball bearing. This sets the location of the gear and locks the armature in place. The oil deflector on two-brush generators also sets the location of the gear.

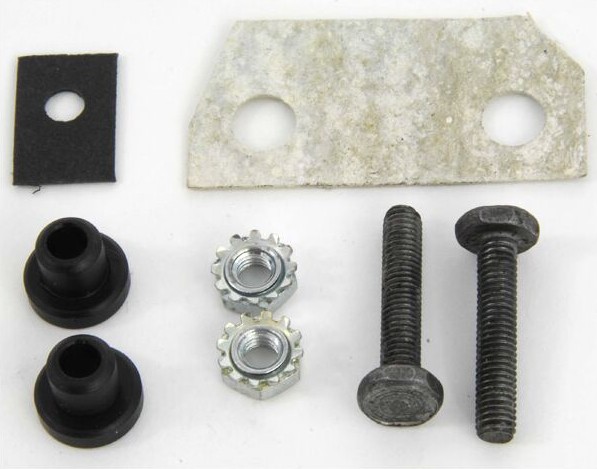

1/4" vs 5/16" Bolt Holes

Early Panheads and 45 Flatheads had 1/4"-24 generator bolts. The later two-brush generators (1958-up) used larger 5/16"-24 bolts. To mount a later generator with an early cam cover, you can either drill out the bolt holes to accept the larger bolts, or use 1/4"-24 heli-coil inserts in the generator threads.

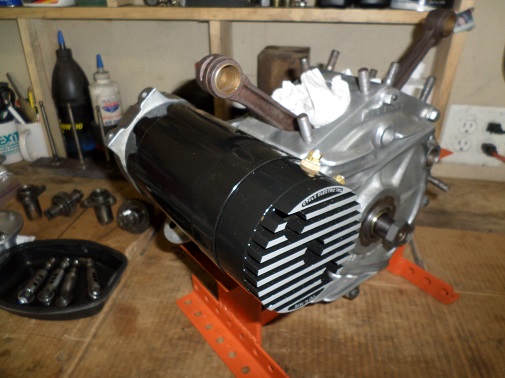

One of the upgrades I made while restoring my 1961 Servi-car was a Cycle Electric generator/regulator. The DGV-5000 generator was easy to install and works perfectly.

harley generator repair or replace

Harley Generator Polarizing

When you buy a Cycle-Electric generator/regulator, they are polarized from the factory. And remember to not leave ignition on without running for any extended period, or you will damage the generator.

Harley 45 flathead with Cyle Electric generator

All CE generator/regulator units carry a two-year warranty. Cycle-Electric has a good reputation for helping customers if installation issues arise. All units are American made, and will truly be the last generator you buy for your motorcycle.

Harley 45 with Cycle-Electric generator with regulator


Generator to Alternator Conversion

The least expensive solution if you're having charging problems is a generator to alternator swap. As an added bonus, your bike will lose several pounds of weight in the conversion.

V-Twin makes an alternator conversion kit that replaces the stock generator on Ironhead Sportsters 1957 to early 1984, and will also fit 1941-1969 Harley FL models with slight modifications.

Ironhead alternator swap

Read: Ironhead Alternator Swap
