Classic Motorcycle Build

Harley-Davidson Panhead

Article by Vintage Vinny

What many consider to be the coolest looking motorcycle of all time, the Panhead was manufactured by Harley-Davidson from 1948 through 1965. The engine's popularity and demand remained so strong, that 25 years after production ended, several aftermarket companies began producing replica Panhead engines.

Harley-Davidson Panhead history

Panhead History

Although the Knucklehead was one of the Motor Company's crowning achievements, by the mid 1940's consumers were demanding more power. Harley engineers updated the Knuck's upper-end with aluminum heads which reduced operating temperatures, and added hydraulic valve lifters which reduced engine noise. The new heads were topped off by redesigned rocker covers which resembled upside-down roasting pans, prompting the nickname "Panhead."

The bottom end was basically unchanged from the Knucklehead, but the engine cases were modified for the new cylinders, and a new camshaft was designed to operate with the new valve system.

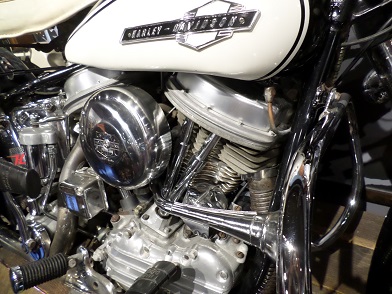

Harley Big Twin Panhead engine

Engine displacement was 73.73 cubic-inches (advertised as 74 cubic-inches), derived from a 3.44" x 4.00" bore and stroke. With 7:1 compression ratio, output was 50 horsepower at 4,800 rpm. Transmission was a separate 4-speed unit.

_________________________________________________
_________________________________________________

Total bike weight was around 565 pounds, and a stock Panhead had a top speed of about 100 miles per hour. Like the Knucklehead, the Pan was offered as either the EL (61 cubic-inches) or FL (74 cubic-inches).

Wishbone Frame

To accommodate the new taller engine, the Panhead received a redesigned frame with double down-tubes. Designed with a mounting plate for engine-guards as well as a steering lock, it became known as the "wishbone" frame. Wheelbase was 59.5 inches.

1948 Panhead Springer

The first year of the Panhead was also the last year of the springer (leading-link) front end for Harley Big-Twins. Color options included Flight Red, Azule Blue, and Black. Gas tank capacity was 3.75 gallons with a one-gallon oil capacity.

***********************

Harley-Davidson Hydra-Glide

In 1949, the Harley-Davidson "Hydra-Glide" was first offered. Hydraulic fork tubes replaced the springer front end, nearly doubling the amount of wheel travel.

Harley Hydra Glide

When introduced, Harley-Davidson did not yet call the new model Hydra-Glide, it was actually just the name of the new telescopic front end. But riders quickly began referring to the whole motorcycle as such, and by 1952, the name Hydra-Glide began appearing on dealer order sheets.

Another update for 1949 was front brake drum diameter increased to eight-inches.

The Hydra-Glide was one of the first streamlined motorcycle designs, with teardrop shaped gas tanks and instrument cluster. Also new was a horizontal shielded front fender and chrome enclosed front forks. These all gave the Panhead a cleaner, more modern look.

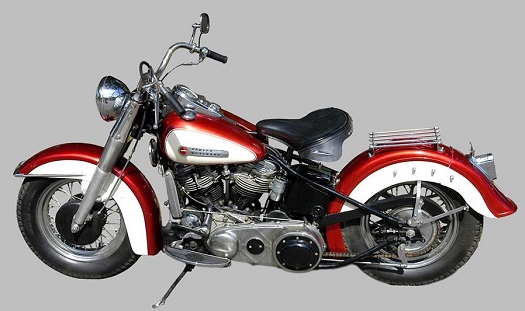

Harley Panhead Hydra Glide

Switch From Foot Clutch To Hand Clutch

The hand-clutch/foot-shift option became available in 1952. Called the FLF, it took a few years to catch on, and many Panheads still left the factory with the foot-clutch/hand-shift setup well into the sixties. Hand-shift models were offered by Harley Big-Twin motorcycles through 1972.

The Mousetrap

A clutch booster, nicknamed the "mousetrap", was added to the Panhead to aid in hand-clutching. It was attached to the front left down-tube with a spring hidden by a vertical cover. These were known to be troublesome, and 'mousetrap eliminators' have been around for nearly as long as the mousetraps.

The 61-cubic-inch (EL) version of the Panhead was dropped after 1952 due to low sales, leaving the 74-cid FL 1200cc as the only engine available on 1953-1965 Panheads.

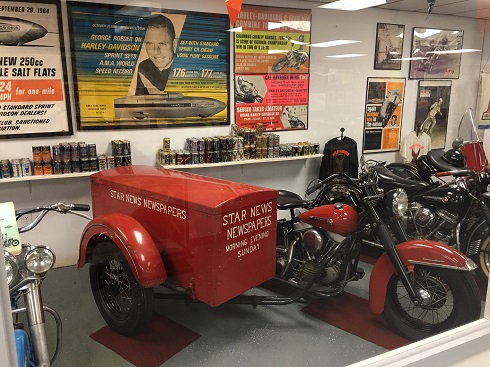

Harley-Davidson Panhead at American Classic Motorcycle Museum

Picture Courtesy American Classic Motorcycle Museum

In 1953, valve lifters were moved from the top of the push rods to the bottom of the push rods. To reduce the likelihood of burnt exhaust valves, a rotating cap was placed between the valve stem and rocker. Internal modifications were made to the muffler, along with a name change from "Mellow-Tone" to "Low-Tone".

Lee Marvin Harley Panhead

Actor Lee Marvin riding a Panhead in 1954 movie "The Wild One"

Indian Goes Bankrupt

After nearly 50 years as Harley's arch-rival, the Indian Motorcycle Company went bankrupt in 1953. When Indian closed its doors, Harley-Davidson, now the only American motorcycle manufacturer, enjoyed increased sales.

1954 Hydra-Glide

The 1954 Hydra-Glide offered the buyer options such as two-tone paint and color-matched hand grips and kick-start pedal, increasing Panhead sales, which accounted for nearly half of all Harley-Davidson's sold in 1954.

***********************

Brooks Stevens

Brooks Stevens was an industrial designer, as well as a graphic designer and stylist. In addition to designing the sheet metal and trim of Hydra-Glide, his diverse portfolio including working at Studebaker during the company's last years, before going on to create and produce the Excalibur motorcar.

***********************

50th Anniversary Harley-Davidson

All 50th Anniversary Harley models were specially trimmed and decorated. Why 1954 and not 1953 is a topic of debate - all subsequent H-D anniversary models would use 1903 as year one.

1955 Panhead

In 1955, the Panhead's intake manifold, a carryover from the Knucklehead, was upgraded with O-ring style ports. The solid lifter/hydraulic push rod was switched to a solid push rod and a hydraulic lifter/tappet. Also this year, valve covers changed from 12-bolt to 6-bolt. This lasted for less than a year, and by late 1955 the 12-bolt cover was back to stay.

Mid-year saw the introduction of the FLH, which had a higher compression ratio and produced 60 horsepower.

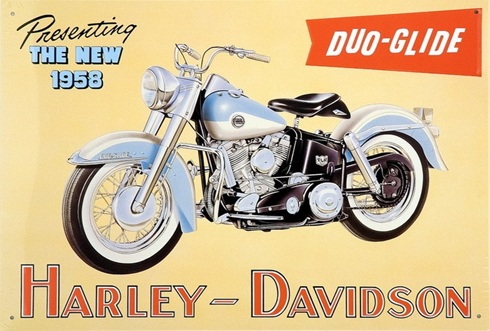

1958 Panhead

The year 1958 is very significant in Harley Panhead history. First, it was the introduction of rear suspension on Big Twin models, making the Hydra-Glide the Duo-Glide. Second, the addition of hydraulic rear brakes (all earlier models had mechanical rear brakes).

Harley-Davidson Panhead history

With the bike now weighing close to 700 pounds, the new brake system was much appreciated by riders.

_________________________________________________
_________________________________________________

Other improvements for 1958 were a new oil tank, as well as transmission and clutch upgrades. The engine's pinion shaft bearing was enlarged to 1.25" diameter. On the sprocket-shaft side, a Timken bearing replaced the earlier style. These make 1958 and up Pan's a better platform for performance modifications.

Over the next several years, minor improvements were seen, and in 1965 the last major step was taken.

1965 Electra Glide

In the Panhead's last year, the Big-Twin housed a 12-volt ignition system and an electric starter option. The left engine case was changed to accommodate the electric-start. This left case and primary cover were used up through the 1969 Shovelhead.

The Duo-Glide became the Electra Glide, a name that endures to this day. Initially, not all riders liked the electric start, as it added 50+ pounds of weight, making the bike about 10 mph slower at the top end.

Harley Panhead history and information

Also for 1965, the Harley Panhead engine came with an automatic-advance distributor, which can be retro-fitted to any earlier (1936 to 1969) 61" or 74" OHV Big-Twin. An optional 'King of the Highway' package included a chrome battery cover, chrome oil tank, directional signals, white saddlebags, and more.

Panhead VIN

All Harley-Davidson Panhead models have the VIN located on left engine case. No frame number was used. The first two numbers are the year and letters (up to four) are the model designation. The last numbers are the production number.

Harley Panhead project bike

Panhead Generator Upgrade

If you ride your Panhead more than 1,000 miles a year, one of the best upgrades you can make is installing a Cycle-Electric generator. Note: Many Pans still have a foot-clutch, and for bikes so equipped you'll need to check for interference before installing a C-E generator. You may have to shim out the foot pedal to gain the clearance needed.

generator charging problems

Read: Harley Generator - Repair or Replace?

The Panhead was a good engine for it's time, but Harley riders continually requested more power, prompting the Motor Company to produce the Shovelhead starting in 1966.

Many riders retro-fitted their Panheads with Shovelhead cylinders and heads when they came out, which gave better air and exhaust flow. The swap required adding an outside oil line, as the Shovelhead crankcases were not drilled to match the holes in the cylinders.

Modern-Day Panhead Engines

Several aftermarket companies, including S&S Cycle and V-Twin Mfg., offer updated Panhead-style engines.

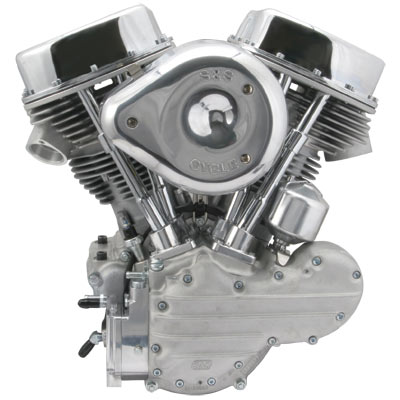

Aftermarket Harley Panhead engine

In the mid-nineties, S&S Cycle introduced their 'Evolution' style crankcases and cylinder heads. Several other companies entered the market, but interchangeability between different manufacturers parts became an issue. After S&S released their long blocks series, many builders switched to using all S&S products. Over the next several years, the line expanded, and engines are now offered in all stages, including completely assembled.

Offered by Panzer Motorcycle Works USA, the 'Neo-Pan' motor was built by Accurate Engineering exclusively for Panzer. The cases, wheels, rods, cylinders and pistons were from S&S Cycles. These motorcycles were built in the late nineties.

***********************

Easy Rider Movie Bikes

Two of the most recognizable custom motorcycles are featured in the 1969 motion picture "Easy Rider", carrying actors Peter Fonda and Dennis Hopper on an odyssey eastward from Los Angeles to New Orleans.

The story is told that Fonda had purchased four used Panheads from a police auction; a 1950, two 1951's, and a 1952 model. Both the Captain America bike and the Billy Bike were designed and built by motorcycle builder Ben Hardy. Peter Fonda met Hardy when he built the bike Fonda rode in The Wild Angels (1966).

Dennis Hopper was interviewed in the documentary "History of the Chopper" and confirms that it was Hardy who built the bikes. One of the people who worked on the bikes was Dan Haggerty, who later starred in the 1977 series 'The Life and Times of Grizzly Adams'.

The Captain America Bike

Starting life as a 1952 Harley-Davidson Hydra-Glide, the Captain America bike retained its original Panhead engine, then mounted in a chromed frame with a raked and stretched front end, with upswept fishtail exhaust. Rounding out the classic chopper was an American flag gas tank and high-back sissy bar seat.

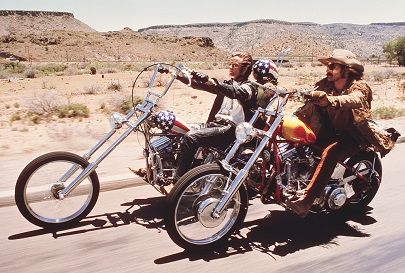

Harleys in Easy Rider movie

The Billy Bike

The Wild West-inspired "Billy Bike" was more conservative. It kept the stock brakes and fenders. The brake light and license mount were moved to a side mount, and tall risers put the drag bars closer to the rider.

Each bike had a backup so that filming would continue in case one of them failed or got wrecked accidentally.

Since the 1969 movie, countless replicas have been made of both Easy Rider bikes. The California Motorcycle Company owns the only Captain America replica that was endorsed by Peter Fonda.

***********************
