Classic Motorcycle Build

Servi-car Axle

Text and Pictures by Mark Trotta

Just like Henry Ford's first automobile, final drive on the Harley Servi-car is a simple chain-drive mechanism. A chain attaches the transmission output gear to the rear drive sprocket, and both rear wheels rotate at the same speed. This type of final-drive system was cheap to manufacture and very durable.

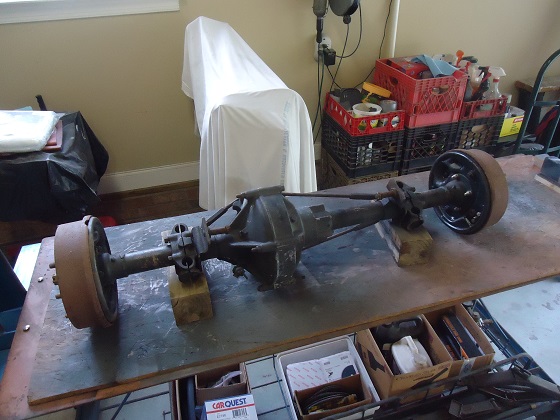

Harley-Davidson Servi-car axle rebuild

Differences In Servi-car Axles

Early Servi-car axles (1934 to 1936) have a big center, with a single mechanical drum brake inside the housing. This brake has two shoes and is internal-expanding on a fixed pivot. A parking brake is mounted inside the rear axle housing.


In 1937, the Servi's brake system was upgraded to a drum brake on each rear wheel. Somewhere in the 1940s, the axle halves were welded together instead of riveted.

The 1941 to 1950 rear axles are slightly different than 1951-1972 units. They will fit up to 1972, but not be "correct". Last-year Servi-car axles (1973) were disc-brake equipped and had six-stud wheels.

Rear Axle Truss Rods

The Servi-car axle has one front and one lower truss rod to keep the axle from bending. There are four coupler nuts which have right-hand threads on one end and left-hand threads on the other end. To remove them, tighten (shorten) the shorter side of the rod, which creates slack on the other side.

Harley Servi-car axle truss rod coupler

The right front truss rod coupler is "smooth". This is for clearance and goes toward the center by the stoplight switch. This coupler has internal lock washers. The other three couplers use external lock washers.

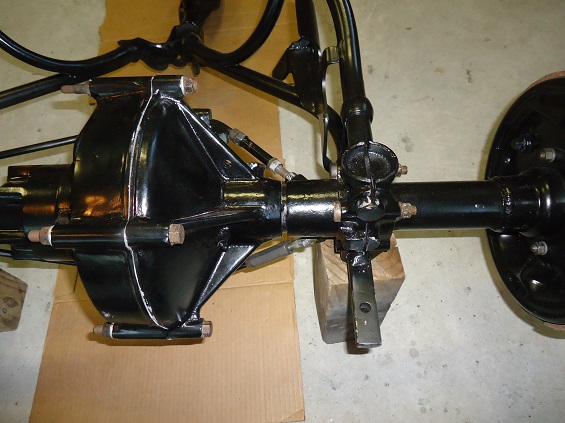

Harley-Davidson Servi-car axle

Unlike automotive rear differentials, Servi-car axles do not require gear oil. They are lubed with approximately four ounces of wheel bearing grease.

Servi-car Axle Rebuild

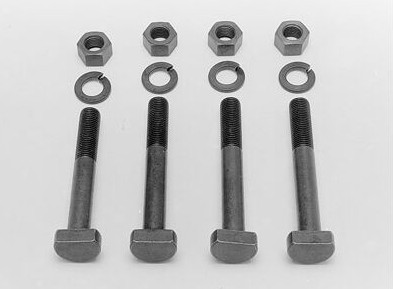

To split the axle open, tap out the axle housing bolts and studs. There are two bolts which measure 4-1/2" in length. The bolts for the nuts face the shorter (right) axle half. Two of the three studs measure 6" and the third measures 5".

Harley-Davidson Servi-car axle

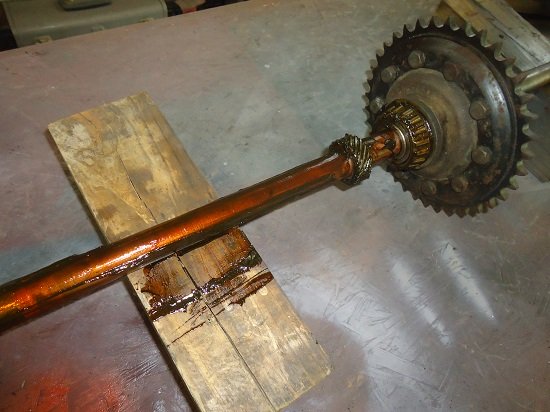

The left axle is longer and measures 26-1/4". The right (shorter) axle measures 20". Both fit 1941-73 Servi-cars. In the event your axles are damaged, they are still available in the aftermarket.

Harley-Davidson Servi-car axle

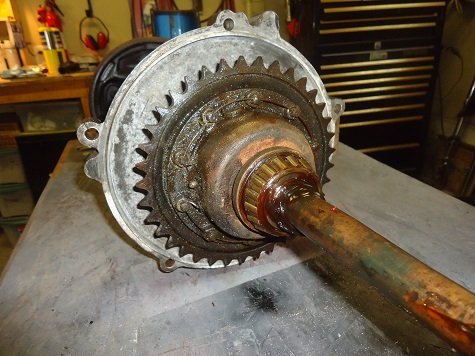

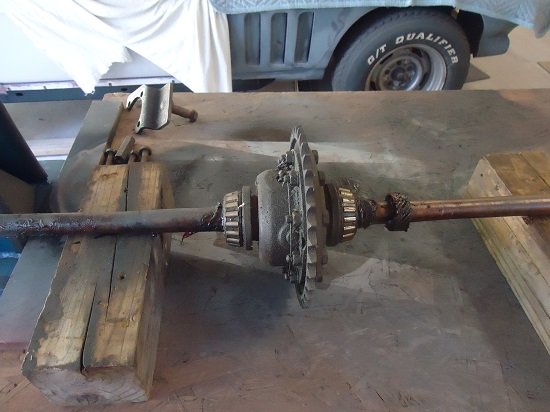

I didn't need to separate my axles, but if you do, there are nine bolts and nuts which need to be removed. A spring wire lock ring holds them in. This allows disassembly of the differential.

Note that there are small "C" clips at the end of the axles at the differential gears in the center section. These are referred to as axle lock half rings, or retaining clips. Two are used per axle.

Harley-Davidson Servi-car project

Inspect all parts for pits, grooves, and gauges. Replace any parts if there is any doubt to their condition. After inspection, clean all parts with solvent and blow dry them with compressed air.


All bearings not needing replacement should be cleaned and repacked with automotive wheel bearing grease.

Before the truss rods were reinstalled, they were grinded, filed, sanded smooth, primed and painted.

Harley-Davidson Servi-car axle

Remember to install the coupler, nut, and lock washer in the correct order, or you'll be taking them off again!

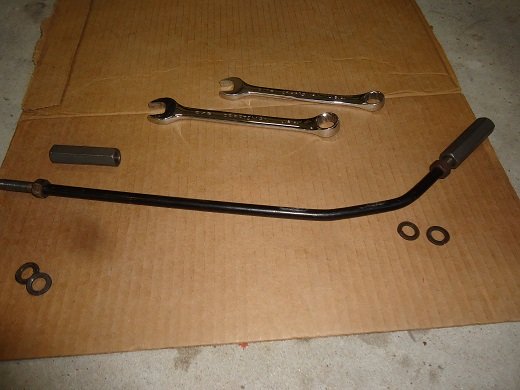

Servi-car axle truss rods

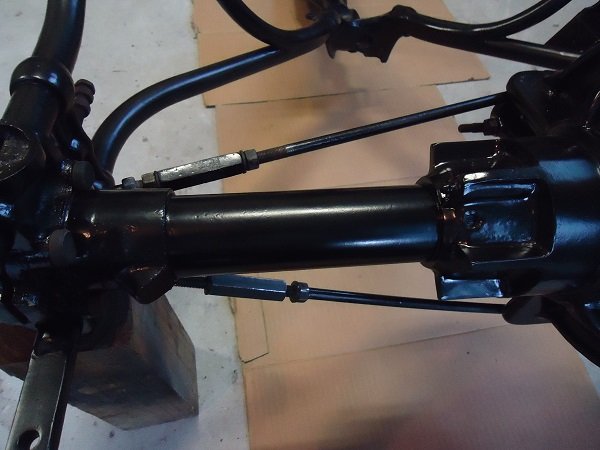

Slowly and evenly, loosen the low-end truss rod fittings, then tighten the high-end fittings until the rods are parallel with the axle. Do not over tighten them, as it may prematurely wear axle parts.

Harley-Davidson Servi-car axle

Before reinstalling the axle to the frame, check tightness of all bolts and install grease fittings. The axle housing takes about four ounces of grease.

Harley-Davidson Servi-car axle

Grease Fittings

If you're replacing the axle grease fittings, you probably won't find them at the local parts store. They are 1/4" fine-thread pitch with a head size of 5/16".


Servi-car Rear Wheels (1937-1950)

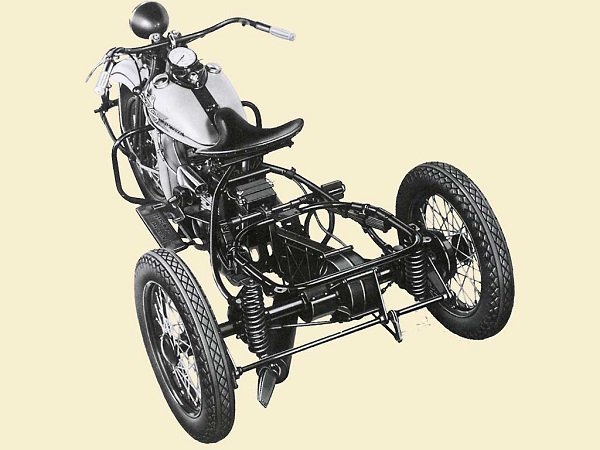

Harley Servi-Cars 1937 through 1950 had 16" x 3" spoke rear wheels. These early rear wheels are a taper fit with key to the axle, and the hubs are specific to them.

early Servi-Car rear wheels

Aftermarket spoke wheels are available and retail for about $1,000 each.

Servi-car Rear Wheels (1951-1972)

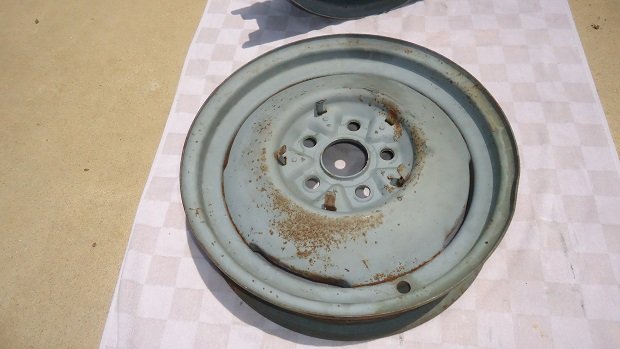

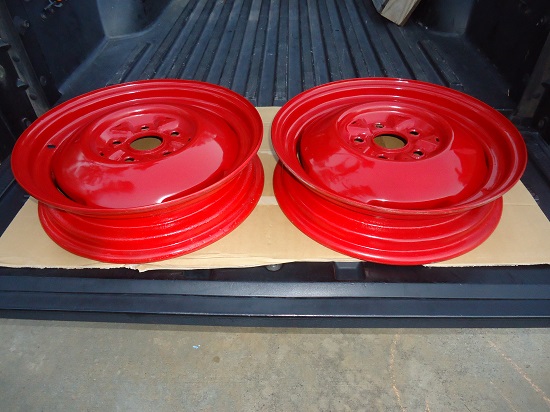

From 1951 to 1972, Harley Servi-cars had automotive-style steel rims, which the factory referred to as "disc wheels". They are 16" x 3.5" and have a drop-center design.

Servi-Car rear wheel

Today, these wheels are hard to find and sell for inflated prices. Unfortunately, there is no automotive wheel that exactly matches them.

Last-year Servi-cars (1973) are unique in that they were the only year with rear disc brakes and had six-lug rear wheels.

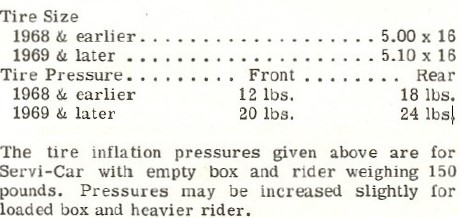

Rear Tires

For my 1961 Servi-car project, I chose Dunlop D402 wide whitewalls. Tire size is MT90B16, which fit the 16 x 3.5 rear wheels. They require 5.10 x 16 center-valve tubes. Don't forget to install rim strips before mounting tires.

Harley-Davidson Servi-car box


Servi-Car Speedometer

From 1947 to mid-1961, Servi-car models had a speedometer ratio of 2:1. The 2:1 ratio was actually used on most Harley models from 1936 to 1961. Later models had the more common 1:1 speedometer ratio.

Servi-car Speedometer Gear

Because there are two different speedometer ratios, there are two different speedometer gears that can be found in Servi-car axles. Note how many teeth your speedometer gear has. The 11-tooth gear is correct for the earlier 2:1 ratio speedometers.

If you need to replace the gear, measure the distance from the gear face to the end of the axle. The new gear needs to be pressed on. Grease the speedometer gear before installing in the rear axle.
