BMW R1100R Ignition Switch Replacement
Article by Mark Trotta
Occasionally I'll take in side work, and when I do, it's likely to be something time consuming, like an engine build or complete rewiring job. To make room in the garage, one of the motorcycles may have to stay outside for a while. And since the R1100R is my least vintage bike, it's the one that has to stay outside.
![remove key switch on 1995 BMW R1100R BMW Oilhead repair and Maintenance](http://www.classic-motorcycle-build.com/image-files/bmw-motorcycle-repair.jpg)
After rolling the bike out onto the driveway and pulling it up on the center stand, I turned the bars to the right, turned the key to the right, and the fork lock engaged into the frame. I give the handlebars a tug to make sure the lock is secure, then cover the bike with an outdoor motorcycle cover.
![key stuck in the lock BMW R1100R BMW R1100R key switch removal](http://www.classic-motorcycle-build.com/image-files/bmw-motorcycle-under-cover.jpg)
The next weekend, I'm ready for my Sunday morning ride. I pull on my boots, slip on my jacket, and grab my helmet. I put the key in the ignition switch, but it won't turn - the key tumbler is stuck in the "lock" position.
What I Tried
- Squirting 3-in-1 oil into the key slot.
- Wiggling the forks back and forth while twisting the key.
- Tapping lightly with a hammer and piece of wood to "shock" and release.
None of these methods worked.
Several weeks later, after the side work is done and the garage is clear, I'm faced with the task of moving a motorcycle with stuck front forks back into the garage.
_________________________________________________
_________________________________________________
I summon two helpers and have them stand on either side of the bike, while I lift it from underneath with a floor jack. Then, with the front wheel off the ground, we slowly pull the bike and floor jack into the garage(!)
![BMW Oilhead repair and Maintenance BMW R1100R key switch removal](http://www.classic-motorcycle-build.com/image-files/xbmw-r1100r-headlamp-and-instrument-cluster-removal.jpg.pagespeed.ic.hn8t8C8r-F.jpg)
Ignition Lock Removal
Many BMW motorcycles left the factory with two security bolts holding the ignition switch to the top clamp. Unless the ignition switch has been replaced before, the top fork clamp (triple tree) needs to be removed in order to remove these security bolts.
![key stuck in the lock BMW R1100R BMW R1100R key switch removal](http://www.classic-motorcycle-build.com/image-files/bmw-r1100r-key-switch-replacement-95.jpg)
Handlebars and Instrument Cluster Removal
Handlebar removal is straightforward; Allen bolts and a couple of threaded studs. The left and right bars were wire-tied out of the way so they did not hang by the wires. Once the handlebars are removed, the one-piece instrument cluster and headlamp bucket can be moved out of the way.
Remove Ignition Switch From Top Fork Clamp
I thought I would have to remove the top clamp, but in my case that wasn't necessary. Seems the ignition switch had been replaced before, as the factory security bolts had been replaced with Allen bolts.
![remove key switch on 1995 BMW R1100R BMW Oilhead repair and Maintenance](http://www.classic-motorcycle-build.com/image-files/bmw-r1100r-key-switch-replacement.jpg)
I was able to unbolt the switch, then pull it down and out of the clamp.
![BMW R1100R replace key lock BMW R1100R key switch removal](http://www.classic-motorcycle-build.com/image-files/remove-set-screw-from-ignition-switch.jpg)
Remove Wire Harness From Switch
On the right-hand side of the key barrel, there is a tiny set-screw. Remove the screw and the wire harness and switch separate.
![remove key switch on 1995 BMW R1100R BMW R1100R stuck fork lock](http://www.classic-motorcycle-build.com/image-files/ignition-switch-replacement-bmw-r1100r.jpg)

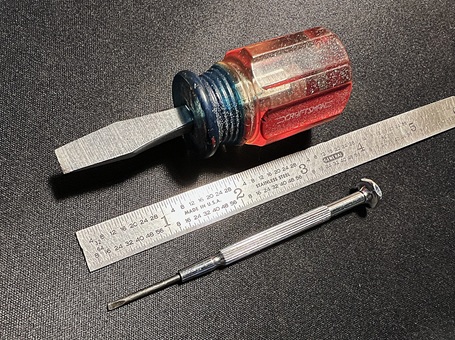

This required using a smallest jewelry-sized screwdriver I owned.
![remove key switch on 1995 BMW R1100R BMW R1100R key switch removal](http://www.classic-motorcycle-build.com/image-files/remove-ignition-switch-bmw-r1100r.jpg)
Lock Barrel Removal
The lock barrel can only be removed with the key in the "on" position. Trouble was, mine was frozen stuck in the lock position. I had three options.
The first option was to soak the ignition switch and tumbler in carburetor parts cleaner, and hope that it works free. I did this for two days. It didn't cost me anything, but it also didn't do anything.
![soak old BMW motorcycle key switch in Chem-Dip BMW Oilhead repair and Maintenance](http://www.classic-motorcycle-build.com/image-files/soaking-stuck-parts-in-chem-dip.jpg)
The second option was to drill out the key tumbler, taking care not to do any more damage in the process. This would involve time and labor and risk, and I'd still have to buy a replacement key tumbler.
The third option was to find a good used ignition switch.
_________________________________________________
_________________________________________________
Seems that the top clamp, ignition switch and key tumbler are the same for several BMW models, including 850's and 1100's. Looking through ebay, there were a handful of sellers offering the key lock with various other parts. I chose one from a reliable seller with reasonable shipping. Included with the ignition switch was an accompanying seat lock, helmet lock, and gas cap door.
![remove key switch on 1995 BMW R1100R BMW R1100R key switch removal](http://www.classic-motorcycle-build.com/image-files/xbmw-motorcycle-ignition-switch-replacement.jpg.pagespeed.ic.e4ZSaadB3C.jpg)
The replacement switch still had the factory security bolts holding it to the clamp.
![how to remove security bolts on BMW R1100R BMW R1100R security bolt removal](http://www.classic-motorcycle-build.com/image-files/bmw-motorcycle-security-bolt-removal.jpg)
Removing Security Bolts
Although there are specialty tools to remove the security bolts, it's fairly common to drill them out and replace with Allen head bolts. I drilled the center of each bolt head with successive-sized drill bits. This allowed me to get a "bite" on them with a #3 spiral screw extractor.
![remove key switch on 1995 BMW R1100R BMW R1100R key switch removal](http://www.classic-motorcycle-build.com/image-files/remove-security-bolt-with-screw-extractor.jpg)
After the security bolts were removed, the replacement ignition switch was installed, then re-installation of headlamp and instrument cluster and handlebars.
****************************
Looking back at it, I'm probably better off not even using the fork lock. A cable and lock is a better theft preventative, because unlike fork locks, it's a visual turn-off for would-be thieves.
![remove key switch on 1995 BMW R1100R BMW R1100R summer eveing ride](http://www.classic-motorcycle-build.com/image-files/xbmw-r1100r-summer-evening-ride.jpg.pagespeed.ic.7S2onYVJu_.jpg)
****************************
