Clutch Removal Norton Commando
Article by Mark Trotta
This article shows the step by step procedure and tools needed for clutch removal on 1972 and up Norton Commando models.
Getting Started
After removing primary outer cover (chaincase), putting the bike in top gear and holding the rear brake will lock the clutch center, allowing the removal of the nut.
The clutch adjuster locknut and threaded clutch adjuster can now be removed.
The clutch diaphragm spring is released by applying pressure with a tool, then removing the large circlip.
CAUTION: Clutch spring is under pressure! A specialty tool is required to remove it.
Although a tool can be fabricated, you can buy one for about $25. I purchased mine from The Bonneville Shop in Montana.
It functions the same as Norton service tool # 06-0999. Fitment includes all Commando models 1968 and up.
Commando Clutch Tool Procedure
First, the bolt is threaded into the spring center. The factory workshop manual recommends at least 1/4" engagement.
With a wrench, tighten the nut that's under the bolt head, only enough to compress the spring so that it can rotate freely behind the spring clip (it will spin in place).
Do not over-tighten nut, or spring may get damaged.
CAUTION: Do not attempt to remove the circlip until the spring feels loose in the housing.
Once the spring is free to rotate, remove the circlip from it's groove with a flat-blade screwdriver.
The tool and diaphragm spring can then be lifted clear. Slacken nut to remove pressure from the spring.
Clutch spring retaining clip (55-0471) and clutch diaphragm spring (06-0770)
Clutch Plate Removal
This '74 Roadster had been sitting for so long, the clutch plates were stuck together in one piece!
They can usually be pulled out one at a time with a magnet or two.
Clutch plates did come loose after a little WD40 and some gentile prying with a flat-blade screwdriver.
On 850 models, there are five friction plates and four plain plates, while the 750 has four and three respectively.
*************
Clutch Pushrod
If you're removing the chainwheel (clutch drum), the clutch pushrod can now be removed. If not, you can leave it in place.
*************
Chainwheel removal requires another specialty tool.
Clutch locking tool (Norton # 06-1015 or equivalent) allows removal of the nut on the end of the gearbox mainshaft.
After removing nut and washer, locking tool fits over center hub, allowing removal of nut of gearbox mainshaft.
Norton clutch hub locking tool in use.
**************
Notes and Misc

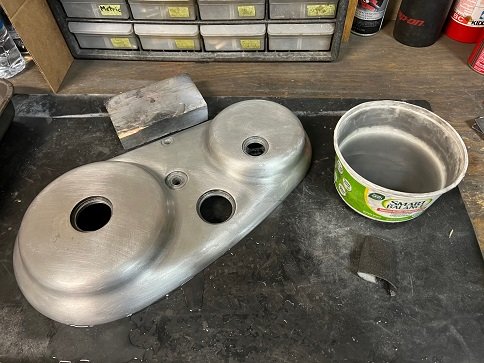

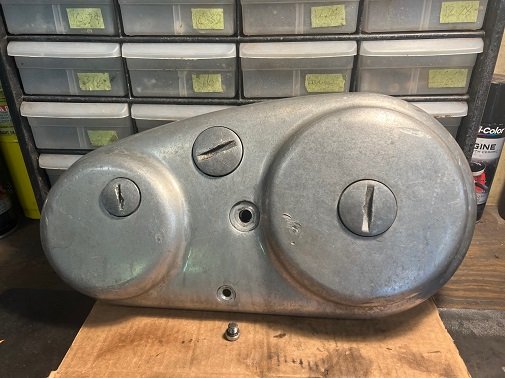

Time to polish the chaincase!

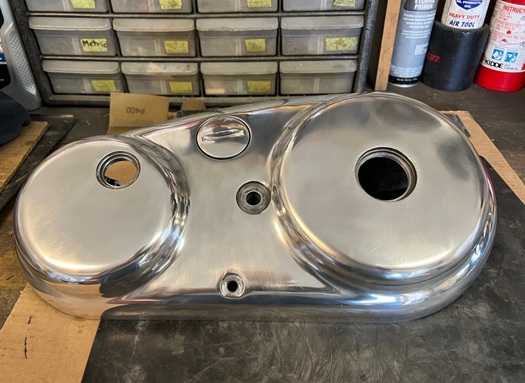

Read: How To Polish Aluminum Engine Parts
*************
