Harley 45 Scavenger Oil Pump Repair
Text and Pictures by Mark Trotta
Designed in the 1930's and in use into the 1970's, Harley 45 oil pumps rarely go bad unless run with little or no oil for any length of time. They were well-engineered, and often outlive other engine components.
There are two separate oil pumps on Harley 45 flatheads, and each has it's own function.
Feed Pump

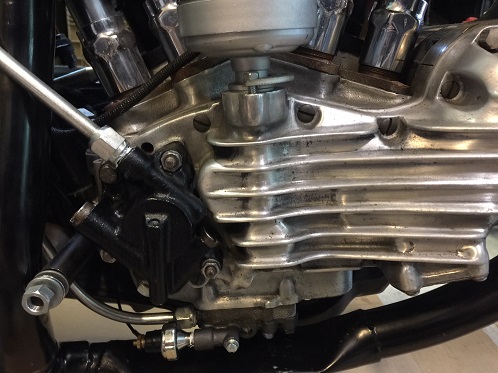

The feed pump mounts to the right-side of the engine on the cam cover. It is a vane-style pump which is gravity-fed oil from the tank, then delivers it to the engine under pressure.
Scavenger Pump
The lubrication cycle is completed by the scavenger oil pump. This is a gear-type pump and mounts to the bottom of the right-side engine case. It's job is to return engine oil back to the oil tank.

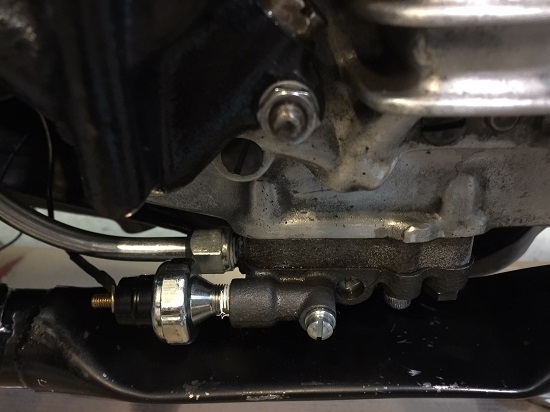

When purchased, the scavenger oil pump on my 1961 Servi-Car had a cracked cover, likely caused by an over-tightened oil pressure switch.
The cracked cover was a chrome aftermarket piece of unknown origin.
Replacement Oil Pump Cover
There are two styles of scavenger oil pump covers found on 45 flatheads. Harley #26232-38 has a provision for an oil pressure switch and chain oiler. The cover without provision for oil pressure switch is Harley #26231-37.
Pictured: Harley #26232-38 cover for flathead 45 motors.
Optional: Plug Off Chain Oiler
If you don't ride the bike much, you can remove and plug the adjusting screw for the chain oiler. Just remember to oil the chain every now and again.
Now you'll have a little less oil leaking on your garage floor.
***********
Remove Scavenger Oil Pump

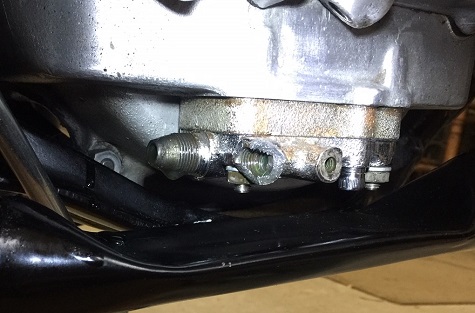

After removing the oil feed line from the oil tank, the pump can be unbolted from the engine. It is held on with 1/4" studs and nuts.
Take note of how the pump comes out. If you're not sure when putting it back on, the gear cover will need to come off to correctly time the breather gear.
Removing the pump with engine in the frame is a bit of a challenge.
In hindsight, I should've removed the exhaust system.
Lying on a concrete floor is not a favorite working position.
***********
Reassembly
There are two flat paper gaskets that go in between the oil pump plates. These gaskets determine end play in the primary and scavenger oil pumps, so you don't want to add any thickness with any kind of sealer.
Oil Pump Rebuild Kit
James Gasket 15-1185 Oil Pump Kit contains all the parts needed to rebuild your 1937 through 1973 Harley 45 oil pump.
All James Gasket products are made in USA.
TIP: Apply a light coat of engine oil to the gaskets, which makes them stick in place.
***********
Install Scavenger Oil Pump/Breather Valve Timing

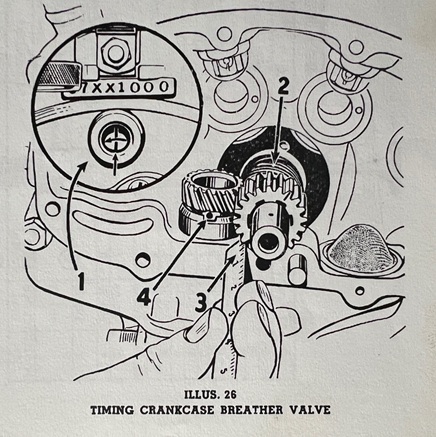

While installing, it is essential to line up the breather gear on top of pump.
Read: Install and Time Cam Gears Harley 45 Flathead
***********
Oil Pressure Switch Installation
The final step was installing a new oil pressure switch onto the pump and reconnecting the electrical wire.
CAUTION: It’s easy to crack the outer cover when installing the oil pressure switch. It’s a tapered 1/8" pipe thread, and you'll crack the cover if you run it in too far.
TIP: Wrap a little Teflon tape around the threads.
***********
Notes and Misc
A dab of Permatex 80631 thread sealant was applied to the oil line threads.
***********
