Bendix Carburetor Overhaul for Harley Motorcycles
Article by Mark Trotta
Originally fitted to 1960's Harley Big-Twins and Sportsters, the Bendix carburetor is a relatively simple unit that is easy to install and easy to tune. Overhauling starts with removal and cleaning, checking for worn parts and replacing seals and gaskets.
Today, they are a popular choice for classic bike owners who still ride their old scoots. Properly set up, they'll provide good performance and gas mileage.
H-D Bendix Carburetors
From 1971 through 1973, all Big-Twin Harleys came equipped from the factory with a 38mm Bendix carb. In 1974, the FL Touring models switched to Keihin, while FX models continued using the Bendix.
From 1972 through early 1976, Harley Sportsters were fitted with a 38mm Bendix carb.
The Bendix HD 16P12 unit seen in this article is from my old 1976 XLH Sportster. It is a 38mm fixed main jet style. Like other Bendix models, it has a dual venturi and uses an accelerator pump.
*******
Getting Started
Carburetor removal is straightforward. They're held to the intake manifold with two bolts.
After it's off the bike and on the workbench, look at the bottom (engine side) of the carb. The throttle-body is held on by the main jet tube assembly. A 9/16" socket removes it.
After completely disassembling, check all parts for re-use.
*********
Carburetor Rebuild Kit

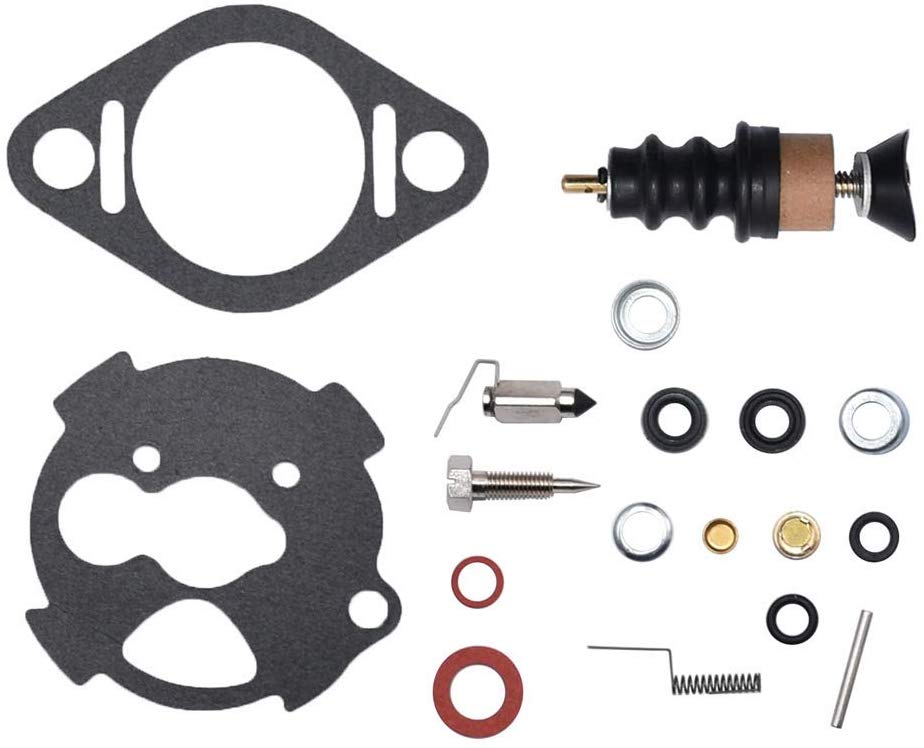

This is the Bendix rebuild kit I purchased for my 1976 Sportster. It is compatible with all 36mm, 38mm, and 40mm Bendix carburetors pre-1976.
Bendix/Zenith Carb Overhaul Kit (does not include new float)
*********
Carb Cleaning
Consider investing in a gallon can of Berryman's Chem-Dip and soak the body and float bowl (not the float). This stuff dissolves the old dried-up remnants of fuel and removes sludge.
CAUTION: Chem-Dip will also eat plastics, puff up gaskets, and remove paint.
After soaking, a little brushing from a nylon brush will help clean things up. The carburetor body and parts can be rinsed with water, as long as everything is completely blow-dried.
To get a good cleaning without soaking the carb in Chem-Dip, you can spray down into the fuel wells with carb cleaning spray enough to make it puddle, then let it sit overnight. Rinse the carburetor and parts with water and blow dry.

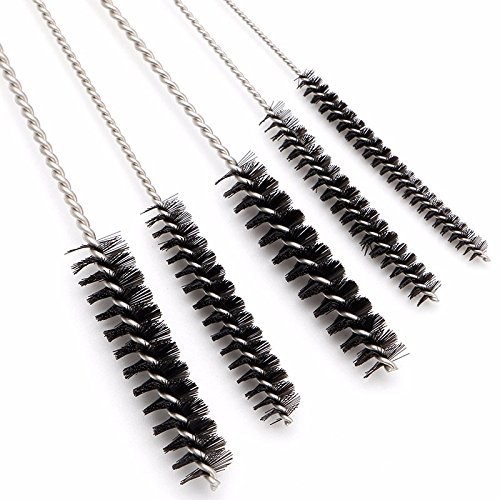

After soaking it, you'll still need to run a carburetor cleaner brush through the small passages to clean out the stubborn junk.
You'll be surprised at how much stuff comes out of the ports.
*******
Reassembly
Around the top of the brass fuel tube assembly there is a fiber washer and an O-ring. The O-ring will rot away over time and will allow fuel to leak into the intake manifold.
After cleaning and blowing out all fuel circuits and air passages with compressed air, reassemble the carburetor. Allow parts to sit (preferably overnight) to ensure all parts are dry. Remember to install the new throttle shaft seal.
If you have an original Harley Bendix carb, you may want to re-use the old steel needle, as the newer ones are Viton-coated, which may have issues with Ethanol-blended gasoline.
********
Install Float
Turn the carb body upside down and install the new bowl gasket.

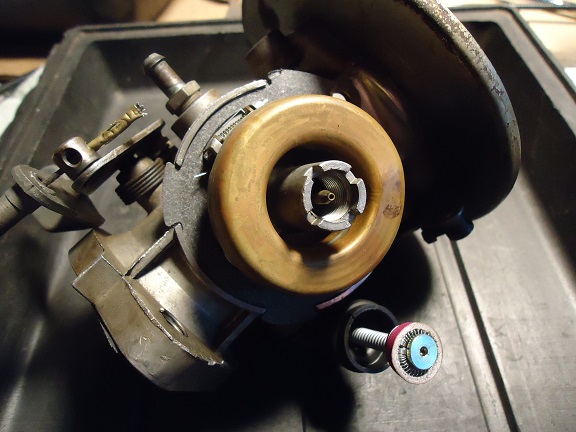

Float clearance is measured from the end of the float to the gasket. Factory specs call for 1/8" float level, but this can be increased to 3/16". An easy way to measure this is with a 3/16" drill bit.
Make sure that the float spring doesn't cause the float to hang up. In fact, racers remove the float spring entirely, which quickens acceleration.
If the old float is gas-soaked, new floats are available, or the old one may be repairable by brazing.
********
Bendix Carb Adjustment
Once the carb is rebuilt and back on your bike, screw the main jet needle (closest to the air cleaner) inward until the spring is almost but not quite coil-bound (the original spring is about 5/8" long). Then turn the needle four full turns out.
Next, set the low speed needle (closest to the engine) one full turn open from the closed position. After starting the engine, some minor adjustments may be needed to "dial it in" to your bike.
*******
Bendix Adjustable Main Jet Kit
As an alternative to buying and swapping different size main jets, installing an adjustable main jet kit will allow quick external tuning with a thumb screw.
Drilling Required
Although it's a great upgrade, early carburetor bodies require drilling and tapping a 9/32"-32 thread.
Once installed, you'll have full adjustability on main and idle circuits. Recommended starting point is 1-1/2 turns out, then idle the bike up and turn till you get the highest, smoothest idle.
*******
New Replacement Carburetor

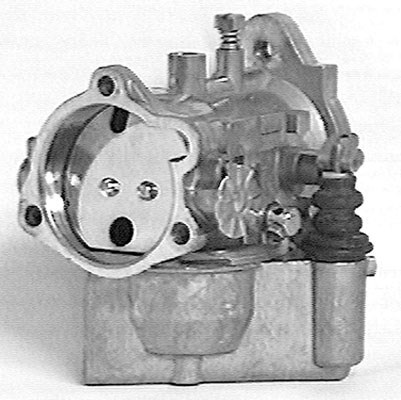

New replacement Bendix carbs were once hard to find, but they are now currently available. They replace the obsolete Harley-Davidson 27155-72B.
New 38mm Bendix Carb for Harley
For larger Big-Twin motors, particularly 80ci engines, the 40mm Bendix carb may work better.
*******
Notes and Misc
Check that the choke arm isn't being held open slightly by the air cleaner backing plate. If it is, the arm can usually be bent slightly out of the way.
For optimum performance, low end and middle-range performance can be enhanced by replacing the idle jet with a two-hole jet (H-D 27725-71), or by cross-drilling the old jet with a 0.038" drill bit.
Another modification is to swap the original PUSH throttle cable to a PULL throttle cable.
Re-install the carb support bracket. If yours is missing, they're fairly easy to make if you have a workbench vice and a drill press.
The one in the pictures was fabricated from an old metal shelf bracket, and works just as well as a factory piece!
Old School Air Filter
Being a compact unit, a Bendix carb sits "tucked in" and allows you to run almost any type of air filter. Round chrome is always a popular choice.
TIP: On a stock air cleaner, you can get a little better flow by placing two 1/2" spacers on two longer air cleaner bolts. This will move the cover out 1/2" and will increase air flow.
Gas Filter
Quality fuel filters, such as this mini glass bowl fuel filter from Milwaukee Twins, add looks as well as function.
If your choke cable or cable housing is missing you can buy them here.
********
